AS3 VENHILL UNIVERSAL BRAIDED SINGLE THROTTLE CABLE KIT 2 METRES

Universal single throttle cable kit supplied as a 2 metre length with 6mm OD stainless steel braided outer conduit which can be trimmed to fit a range of motorcycles with a single throttle cable. Ideal for older or obscure models where the OEM throttle cables may have been discontinued or for custom motorcycle builds.

Components Included

• 2 metres x 6mm OD stainless steel braided outer conduit
• 2 metres x 1.5mm OD inner wire with 3mm OD x 3.2mm long carb nipple at one end
• 1 x 6mm OD x 8mm barrel nipple
• 1 x 6mm OD x 4.2mm barrel nipple
• 1 x 5mm OD x 7.5mm barrel nipple
• 2 x 6mm OD x 5.5mm barrel nipple
• 1 x 80 degree ferrule bend assembly with M6 x 1.00mm threads and lock nuts (FB1C)

• 1 x Ferrule bend assembly with M6 x 1.00mm threads and lock nuts (FB2C)
• 1 x 30 degree ferrule bend assembly with M6 x 1.00mm threads and lock nuts (FB3C)
• 1 x Ferrule bend assembly with 7.9mm nose diameter (TGB1C)
• 1 x Ferrule bend assembly with 7.9mm nose diameter (TGB2C)
• 2 x 6.35mm OD x 11mm cap ferrules

Features

• Universal kit, designed to be trimmed to fit
• Strong galvanised steel inner wire
• Stainless steel braided outer conduit

• Smooth easy clean PVC finish
• Supplied with installation instructions
• A basic soldering kit is required to install
• All parts are in stock and ready for immediate despatch
• Custom colours are available on request

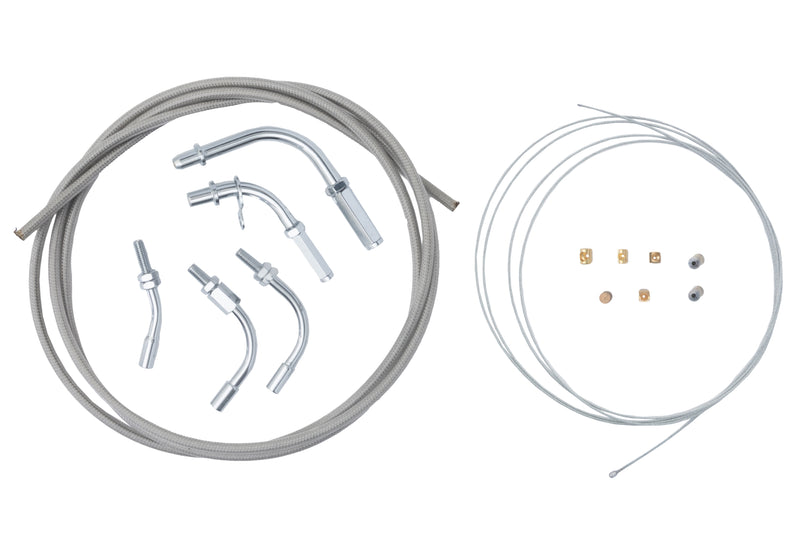

• The throttle cable kit in the photo shows the exact components you will receive
